Introduction

C-334 four doors access control board can manage four doors, support 156,000 users data, 250,000 event logs ( card reading, alarm, exit button, door sensor, OS), provides six relay outputs (four lock relays, two alarm relays),eight exit button input ports, four door sensor input ports, eight WG26/34 card reader input ports, two RS485 and one TCP/IP communication ports. Support operating voltage DC9V to 14V, working current <280mA.

C-334 four doors access control board mainly responsible for access control system control part, it is the most important part, it can store personnel card data, reading data, password data, various parameters, etc. With the card reader, power locks, power supply, push button to comprised access control system etc. FC-8910H can manage two doors and support two door access control. It mainly used in: enterprises, communities, schools, factories, and the FC-8900H series built in a function which mainly used for banks and prison , so it very suitable for bank vault and prison channel.

Function

Conventional Function：Offline Operation,Reading Card Unlocking, Passwords Unlocking, Reading Card+Passwords Access, Card+Passwords Unlocking,Manual Input Card Number + Passwords Unlocking,First Card Unlocking, Normal Card Unlocking, Remote Unlocking, Remote Locking, Unlocking at definite time Period, Normally Open, Real Time Supervision, Abnormally Supervision,E-map,Duress Alarm,Fire Alarm Linkage,Robber Alarm,Illegal Break In Alarm,Illegal Card Alarm,Missing card Management,Black list Card Alarm,Door open time out Alarm/Prompt,Anti-passback And Uploading Small Group Data, Uploading Dual Door Interlocking,Multi-Door Interlocking,Multi-Card Unlocking,Keypad Programming, Emergency Locking, Time Attendance, 64 Groups Time zone, Holiday, time zone and etc.

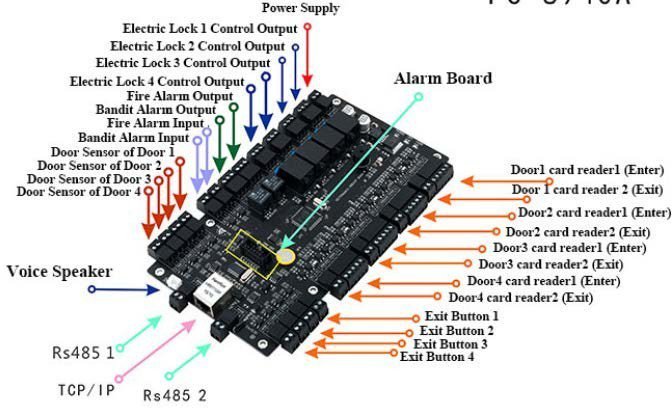

Interface Introduction
